宝马点火线圈多久更换一次？坏了会有什么症状？
点火系统是发动机正常运转的重要组成部分，而点火线圈作为其中的关键部件，承担着将低压电转换为高压电的重要任务，为火花塞提供足够的点火能量。一旦点火线圈出现老化或故障，不仅会影响发动机正常点火，还可能影响发动机的稳定运行。
那么，点火线圈是如何工作的？出现故障后又有哪些表现？多久更换一次？
The ignition system is an essential part of normal engine operation. As a key component of the ignition system, the ignition coil plays an important role in converting low-voltage electrical energy into high voltage and providing sufficient ignition energy to the spark plugs. Once the ignition coil becomes worn or develops a fault, it can not only affect normal engine ignition but may also compromise the engine’s overall operating stability.
So, how does an ignition coil work? What symptoms can occur when it fails? And how often should it be replaced?
PART.01
什么是点火线圈？
What Is an Ignition Coil?

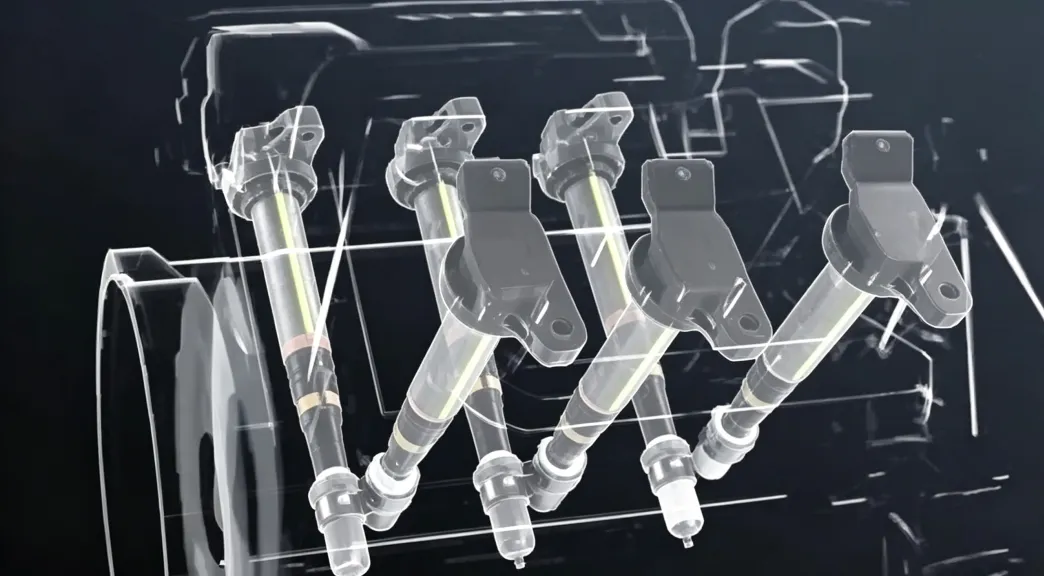

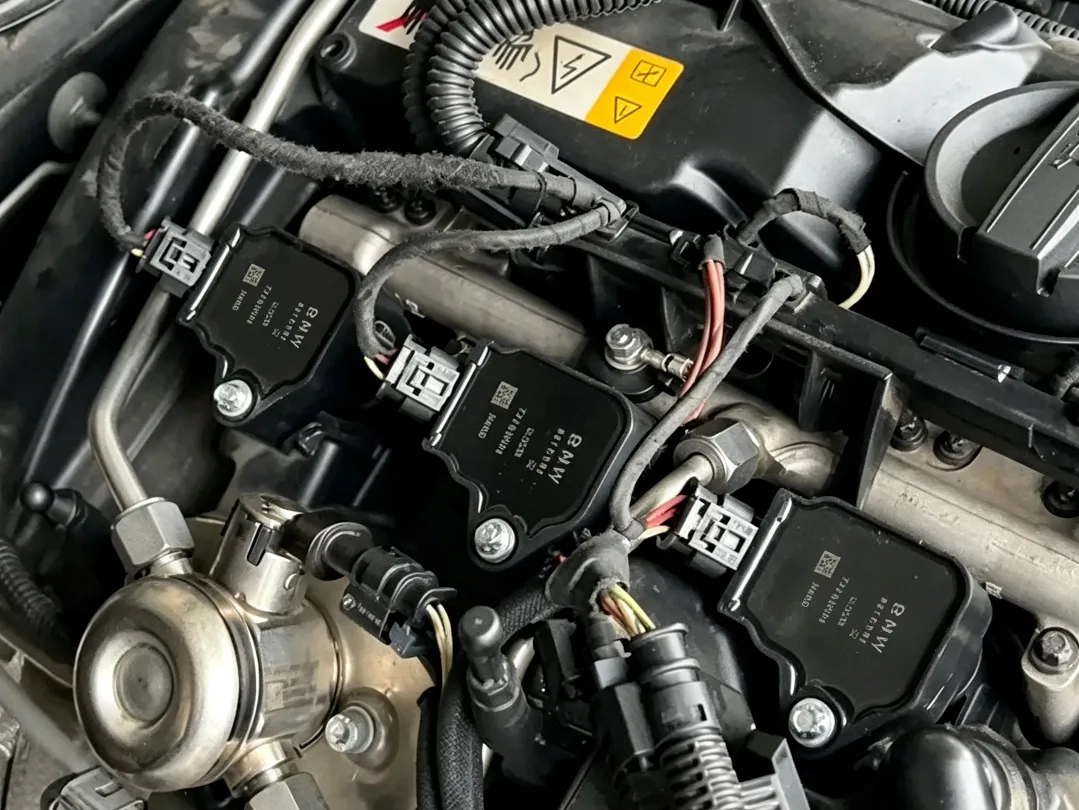

点火线圈可以理解为发动机点火系统中的“高压电转换器”。点火线圈内部主要由初级线圈、次级线圈、铁芯等部件组成。
点火线圈的工作原理本质是电磁感应，当发动机运行过程中，发动机控制单元会根据发动机转速、负荷等工作状态控制点火线圈通断电。当初级线圈通电时，会在铁芯周围形成磁场；电流突然切断后，磁场快速变化，从而在次级线圈中产生高电压。产生的高压电随后传递至火花塞，使火花塞电极之间产生火花，点燃气缸内的可燃混合气，完成一次点火过程。随着发动机不断运转，点火线圈会持续进行这样的“通电—断电—升压”循环，为发动机提供稳定的点火能量。
An ignition coil can be understood as a “high-voltage converter” in the engine’s ignition system. It mainly consists of components such as the primary winding, secondary winding, and iron core.
The ignition coil works based on the principle of electromagnetic induction. When the engine is running, the engine control unit (ECU) controls the ignition coil’s energizing and de-energizing cycles according to operating conditions such as engine speed and load. When current flows through the primary winding, it generates a magnetic field around the iron core. When the current is suddenly interrupted, the magnetic field changes rapidly, inducing a high voltage in the secondary winding.
The resulting high voltage is then delivered to the spark plug, creating a spark between its electrodes. This ignites the combustible air-fuel mixture inside the cylinder and completes the ignition process. As the engine continues to run, the ignition coil repeatedly performs this “energizing–de-energizing–voltage transformation” cycle, providing stable ignition energy for the engine.
PART.02
点火线圈故障现象
Ignition Coil Failure Symptoms
01
发动机抖动、怠速不稳
Engine Vibration and Unstable Idle
车辆在怠速状态下，由于发动机转速较低，对点火稳定性的要求更高，因此故障表现会更加明显，如果长时间忽视，发动机持续缺缸工作，不仅会影响驾驶舒适性，还可能加剧其他发动机部件的负荷。
常见情况包括：
发动机怠速时明显抖动；
方向盘、车身出现异常震动；
发动机转速忽高忽低；
排气声音不均匀，有明显“突突”感。
When the vehicle is idling, the engine operates at a lower speed, making ignition stability even more important. As a result, ignition coil faults often become more noticeable at idle. If the issue is ignored for an extended period, continuous misfiring can not only affect driving comfort but may also increase the load on other engine components.
Common symptoms :
Noticeable engine shaking while idling;
Abnormal vibration felt through the steering wheel or vehicle body;
Fluctuating engine speed;
Uneven exhaust sound with noticeable sputtering.
02
加速无力、动力下降
Weak Acceleration and Reduced Power
点火线圈工作异常时，火花塞无法获得足够的点火能量，会导致燃油与空气混合物无法充分燃烧，使发动机输出效率下降。尤其是在急加速、高负荷驾驶情况下，发动机需要更强的点火能量，如果点火线圈性能下降，动力不足的问题会更加明显。
在日常驾驶中，车主可能会感觉：
踩下油门后车辆响应变慢；
加速过程不顺畅，有明显顿挫感；
超车或爬坡时动力不足；
发动机高转速运行时表现乏力。
When the ignition coil is not functioning properly, the spark plug may not receive sufficient ignition energy, preventing the air-fuel mixture from burning completely and reducing engine power output. This issue can become more noticeable during hard acceleration or high-load driving, when the engine requires greater ignition energy. If the ignition coil’s performance has deteriorated, the lack of power may become more apparent.
During daily driving, drivers may notice:
Slower vehicle response after pressing the accelerator;
Hesitation or noticeable jerking during acceleration;
Insufficient power when overtaking or driving uphill;
Weak engine performance at high RPMs.
03
启动困难甚至无法启动
Difficulty Starting or Failure to Start
发动机启动时，需要点火系统提供稳定的高压电，使火花塞产生足够强的电火花，从而点燃混合气。如果点火线圈严重损坏，无法为火花塞提供正常的高压电，可能导致发动机启动困难，严重时甚至无法正常启动。尤其是在冷启动或低温环境下，对点火系统的要求更高，点火线圈性能不足的问题可能更加明显。
可能出现以下现象：
车辆启动时间变长；
多次尝试才能启动；
启动后容易熄火；
严重时发动机无法启动。
When starting the engine, the ignition system needs to provide a stable high voltage to generate a sufficiently strong spark at the spark plug, allowing the air-fuel mixture to ignite properly. If the ignition coil is severely damaged and unable to provide the required high voltage, the engine may become difficult to start or, in severe cases, may fail to start altogether. This issue can be particularly noticeable during cold starts or in low-temperature environments, where the ignition system is subject to greater demands.
Possible symptoms :
Longer engine cranking time;
Multiple attempts required to start the vehicle;
The engine may stall shortly after starting;
In severe cases, the engine may fail to start.
04
油耗增加
Increased Fuel Consumption
点火线圈故障会导致点火能量不足，使进入气缸内的混合气无法充分燃烧。未完全燃烧的燃油不仅无法有效转化为动力，还会增加发动机的燃油消耗，长期处于燃烧不充分状态，还可能增加排放系统的压力，对三元催化器等部件造成影响。
常见现象包括：
日常行驶油耗明显升高；
加满一箱油后的续航里程减少；
排气气味异常；
发动机工作效率下降等情况。
A faulty ignition coil can result in insufficient ignition energy, preventing the air-fuel mixture in the cylinder from burning completely. Incompletely burned fuel not only fails to be efficiently converted into power but can also increase fuel consumption. Prolonged incomplete combustion may place additional strain on the emissions system and affect components such as the catalytic converter.
Common signs ：
A noticeable increase in fuel consumption during daily driving;
Reduced driving range after filling the fuel tank;
Unusual exhaust odors;
Reduced engine operating efficiency.
PART.03

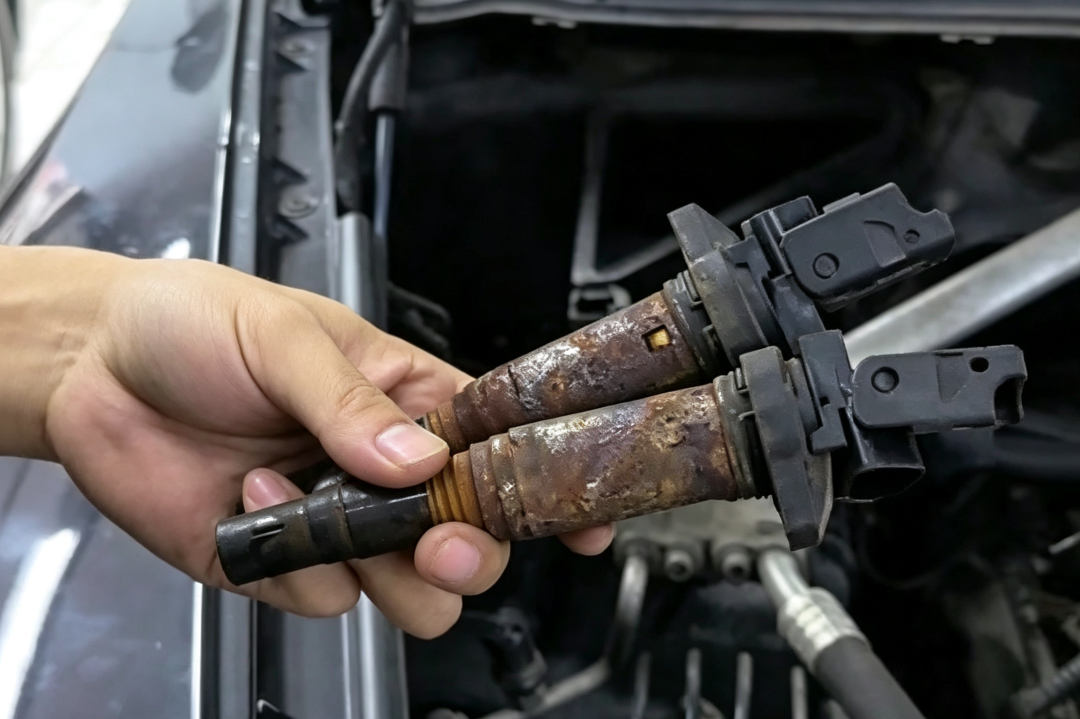

故障后会有哪些后果?
What Are the Consequences of a Faulty Ignition Coil?
如果长期带故障行驶，点火不良可能导致发动机持续失火，造成动力输出不稳定，影响车辆正常驾驶体验。同时，未充分燃烧的混合气进入排气系统，还可能增加三元催化器的工作负担，长期失火甚至可能对相关部件造成损伤。此外，发动机持续处于异常燃烧状态，也会影响整体运行效率。因此，当车辆出现明显抖动、动力下降、启动困难或故障灯亮起等情况时，应及时进行检查，避免小故障进一步扩大。
If a vehicle continues to be driven with an ignition fault, poor ignition may cause persistent engine misfires, resulting in unstable power delivery and affecting the overall driving experience. At the same time, incompletely burned fuel entering the exhaust system may place additional strain on the catalytic converter, while prolonged misfires may even cause damage to related components.
In addition, continuous abnormal combustion can reduce overall engine operating efficiency. Therefore, when the vehicle shows noticeable shaking, reduced power, difficulty starting, or an illuminated warning light, it should be inspected promptly to prevent a minor fault from developing into a more serious problem.
PART.04

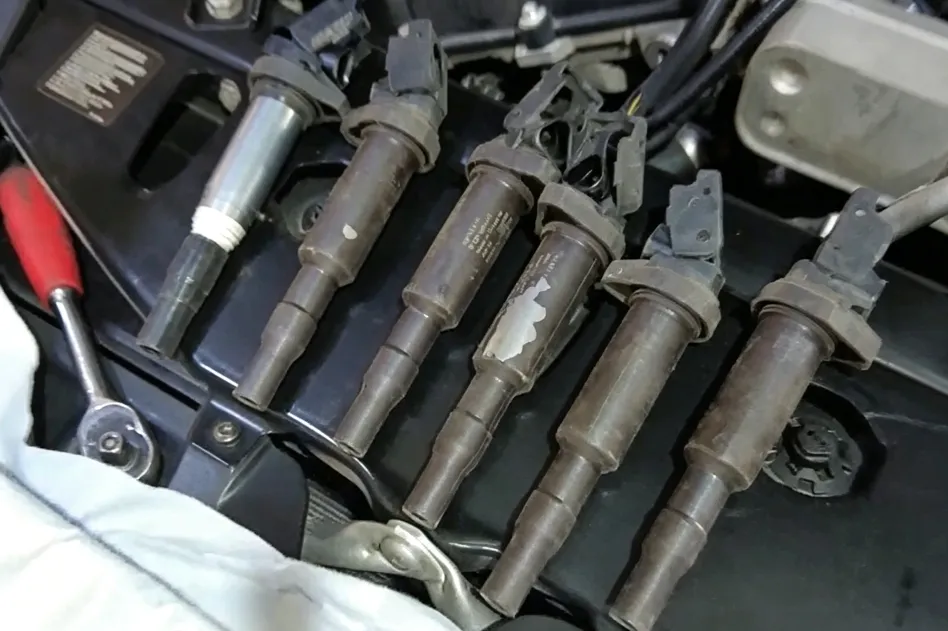

宝马点火线圈多久更换一次？
How Often Should BMW Ignition Coils Be Replaced?
点火线圈没有统一固定的更换周期，实际使用寿命会受到车型、发动机工况、使用环境、驾驶习惯以及产品质量等多种因素影响。需要注意的是，如果更换点火线圈后故障依旧存在，也应进一步检查火花塞、喷油系统、进气系统及线路连接等部件，避免只更换单一零件而忽略其他故障原因。
There is no fixed replacement interval for ignition coils. Their actual service life can be affected by various factors, including the vehicle model, engine operating conditions, driving environment, driving habits, and product quality. It is important to note that if the problem persists after replacing the ignition coil, other components should also be inspected, such as the spark plugs, fuel injection system, intake system, and electrical connections. This helps avoid replacing only a single component while overlooking other potential causes of the fault.

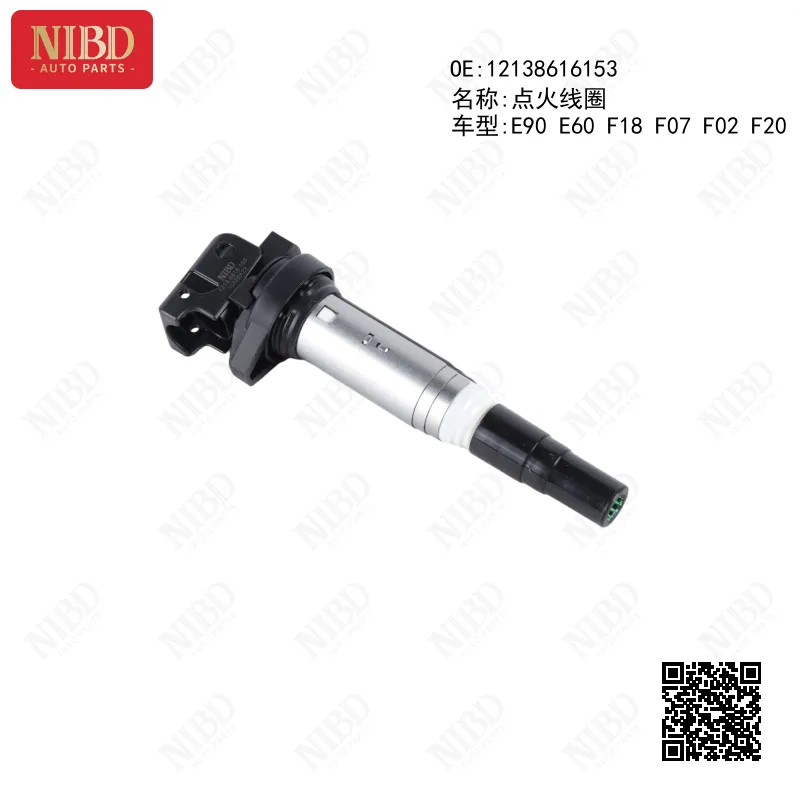

耐博德作为专注于汽车零部件的品牌，耐博德点火线圈注重产品制造工艺与实际使用性能，从材料选用、内部结构到生产装配进行严格把控。
NIBD Ignition Coils are engineered witha strong focus on manufacturing quality,structural integrity, and reliableperformance in real-world applications.From carefully selected materials andoptimized internal components toprecision manufacturing and assembly,every production stage is subject tostrict quality control to deliver stableignition performance, dependableoperation, and enhanced durability.
重点总结
当车辆出现发动机抖动、动力下降、启动困难或故障灯亮起等异常情况时，不要忽视点火系统的检查。及时排查点火线圈及相关部件状态，发现问题及时更换，才能让发动机保持稳定运行，为日常驾驶提供更可靠的保障。
When your vehicle experiences symptoms such as engine vibration, reduced power, difficulty starting, or an illuminated warning light, do not overlook the ignition system. Timely inspection of the ignition coils and related components, along with prompt replacement of any faulty parts, can help keep the engine running smoothly and provide more reliable performance for everyday driving.
